Product Overview

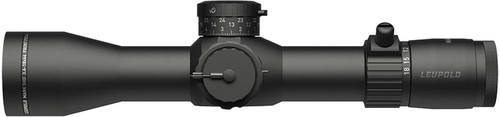

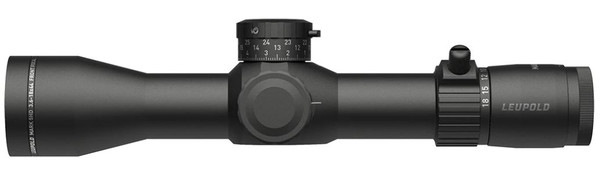

Pick up a Mark 5HD™ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances.
Specifications
- Brand: Leupold
- Part #: 182943
- UPC: 030317034900
- Bluetooth enabled: No
- BDC Dial Included: No
- Custom Dial System (CDS): No
- Custom BDC Dial Compatible: Yes
- Daylight Bright Illumination: No
- Elevation Adjustment Type: M5C3
- Electronic Reticle Level: No
- Illuminated Reticle: No
- Locking Dial: Yes
- Magnification Type: Variable
- Motion Sensor Technology (MST): No
- Nightvision Compatible Illumination: No
- Revolution Indicator: Yes
- Reticle: FFP PR2-MIL
- Rezero Type: Set Screw
- Reticle Type: First Focal Plane
- Adjustable Objective: No
- Straight-Wall BDC Dials Included: No
- Windage Adjustment Type: Capped
- Weight (oz): 26
- Elevation Adjustment Value per Click: 0.1Mil
- Elevation Adjustment Range (MOA): 100
- Elevation Adjustment Range (MIL): 29
- Elevation Adjustment Range (cm @ 100m): 291
- Elevation Adjustment Per Revolution: 10.5 MIL
- Elevation Dial Travel Limit: 30MIL
- Windage Adjustment Value per Click: 0.1Mil
- Windage Adjustment Range (MOA): 80
- Windage Adjustment Range (MIL): 23
- Windage Adjustment Range (cm @ 100m): 233
- Windage Adjustment Per Revolution: 10 MIL
- Magnification Max: 18
- Magnification Min: 3.6
- Objective Lens Diameter (mm): 44
- Linear FOV Low Mag (ft@100yds): 28.3
- Linear FOV High Mag (ft@100yds): 5.8
- Angular FOV Low Mag (Degrees): 5.4
- Angular FOV High Mag (Degrees): 1.1
- Eye Relief Low Mag (in): 3.5
- Eye Relief High Mag (in): 3.8
- Minimum Parallax-Free Distance (yd): 50
- A Total Length (in) - A: 12.1
- B Total Mounting Space (in) - B: 5.9
- C Front Mounting Space (in) - C: 1.7
- D Rear Mounting Space (in) - D: 2
- E Eyepiece Length (in) - E: 3.3
- F Objective Length (in) - F: 2.9
- G Objective Diameter (in) - G: 2.1
- H Eyepiece Diameter (in) - H: 1.8
- K Maintube Diameter (mm/in) - K: 35 mm
