Product Overview

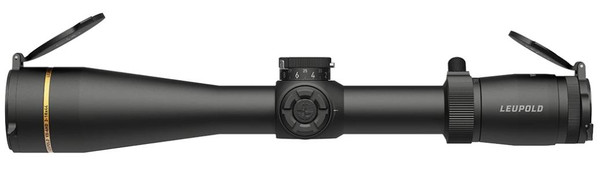

With a slightly smaller objective lens than its 50mm counterpart, the VX-6HD Gen 2 3-18x44mm can do it all while packing a little less weight. Dial it down to 3x to get enough field of view when hunting in brush and timber or dial it all the way up to 18x and you've got the magnification needed for proper identification and shot placement.
Specifications
- Brand: Leupold
- Part #: 184424
- UPC: 030317038656
- Adjustable Parallax: Side Focus
- Battery Type: CR2032
- Bluetooth enabled: No
- BDC Dial Included: No
- Custom BDC Dial Compatible: Yes
- Daylight Bright Illumination: Yes
- Elevation Adjustment Type: CDS-SZL2
- Locking Dial: Yes
- Magnification Type: Variable
- Nightvision Compatible Illumination: No
- Reticle Focal Plane: Second Focal Plane
- Revolution Indicator: Yes
- Reticle: Illum. TMOA
- Rezero Type: SpeedSet
- Reticle Type: Illuminated
- Adjustable Objective: No
- Precision Side Focus: Yes
- Straight-Wall BDC Dials Included: No
- Switch Type: Push Button
- Windage Adjustment Type: Zero-Lock WIndage
- Weight (oz): 22.1
- Elevation Adjustment Value per Click: 1/4MOA
- Elevation Adjustment Range (MOA): 85
- Elevation Adjustment Range (MIL): 25
- Elevation Adjustment Range (cm @ 100m): 247
- Elevation Adjustment Per Revolution: 20 MOA
- Elevation Dial Travel Limit: 38MOA
- Windage Adjustment Value per Click: 1/4MOA
- Windage Adjustment Range (MOA): 85
- Windage Adjustment Range (MIL): 25
- Windage Adjustment Range (cm @ 100m): 247
- Windage Adjustment Per Revolution: 20 MOA
- Magnification Max: 18
- Magnification Min: 3
- Objective Lens Diameter (mm): 44
- Linear FOV Low Mag (ft@100yds): 38.3
- Linear FOV High Mag (ft@100yds): 6.4
- Angular FOV Low Mag (Degrees): 7.3
- Angular FOV High Mag (Degrees): 1.2
- Eye Relief Low Mag (in): 3.7
- Eye Relief High Mag (in): 3.8
- Minimum Parallax-Free Distance (yd): 50
- Battery Life (hr), Low Intensity: 1600
- Battery Life (hr), Medium Intensity: 1000
- Battery Life (hr), High Intensity: 300
- Number of Illum Settings: 8
- A Total Length (in) - A: 13.5
- B Total Mounting Space (in) - B: 5.4
- C Front Mounting Space (in) - C: 1.3
- D Rear Mounting Space (in) - D: 2.3
- E Eyepiece Length (in) - E: 3.3
- F Objective Length (in) - F: 4.8
- G Objective Diameter (in) - G: 2.1
- H Eyepiece Diameter (in) - H: 1.8
- K Maintube Diameter (mm/in) - K: 30 mm
