Product Overview

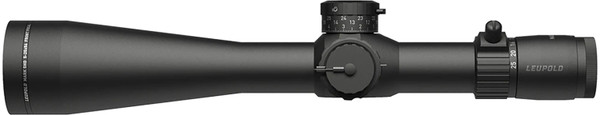

Pick up a Mark 5HD™ 5-25x56mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate mid-range shots, while also giving you the flexibility to reach out to long distances.
Specifications
- Brand: Leupold
- Part #: 180610
- UPC: 030317028473
- Adjustable Parallax: Side Focus
- Battery Type: CR2032
- Bluetooth enabled: No
- BDC Dial Included: No
- Custom Dial System (CDS): No
- Daylight Bright Illumination: No
- Elevation Adjustment Type: M5C3
- Electronic Reticle Level: No
- Locking Dial: Yes
- Magnification Type: Variable
- Motion Sensor Technology (MST): Yes
- Reticle Focal Plane: First Focal Plane
- Revolution Indicator: Yes
- Reticle: Illum. FFP PR1-MIL
- Rezero Type: Set Screw
- Reticle Type: Illuminated
- Adjustable Objective: No
- Straight-Wall BDC Dials Included: No
- Switch Type: Dial
- Windage Adjustment Type: Capped
- Weight (oz): 30
- Elevation Adjustment Value per Click: 0.1Mil
- Elevation Adjustment Range (MOA): 120
- Elevation Adjustment Range (MIL): 35
- Elevation Adjustment Range (cm @ 100m): 349
- Elevation Adjustment Per Revolution: 10.5 MIL
- Elevation Dial Travel Limit: 30MIL
- Windage Adjustment Value per Click: 0.1Mil
- Windage Adjustment Range (MOA): 60
- Windage Adjustment Range (MIL): 17
- Windage Adjustment Range (cm @ 100m): 175
- Windage Adjustment Per Revolution: 10 MIL
- Magnification Max: 25
- Magnification Min: 5
- Objective Lens Diameter (mm): 56
- Linear FOV Low Mag (ft@100yds): 20.4
- Linear FOV High Mag (ft@100yds): 4.2
- Angular FOV Low Mag (Degrees): 3.9
- Angular FOV High Mag (Degrees): .8
- Eye Relief Low Mag (in): 3.6
- Eye Relief High Mag (in): 3.8
- Minimum Parallax-Free Distance (yd): 50
- Battery Life (hr), Low Intensity: 1800
- Battery Life (hr), High Intensity: 96
- Number of Illum Settings: 7
- A Total Length (in) - A: 15.7
- B Total Mounting Space (in) - B: 6.2
- C Front Mounting Space (in) - C: 2
- D Rear Mounting Space (in) - D: 2
- E Eyepiece Length (in) - E: 3.3
- F Objective Length (in) - F: 6.2
- G Objective Diameter (in) - G: 2.5
- H Eyepiece Diameter (in) - H: 1.8
- K Maintube Diameter (mm/in) - K: 35 mm
