Product Overview

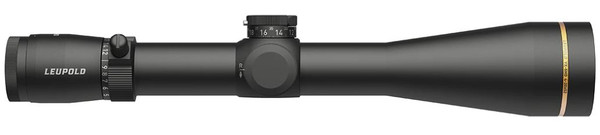

When long shots are on the table, the VX-5HD Gen 2 4-20x52mm gives you the confidence to take them. Its powerful 20x magnification lets you zoom in for precise shot placement, while the rugged build and Professional-Grade Optical system delivers absolute clarity. This is long-range performance and precision without compromise.
Specifications
- Brand: Leupold
- Part #: 183859
- UPC: 030317036980
- Bluetooth enabled: No
- BDC Dial Included: No
- Custom BDC Dial Compatible: Yes
- Daylight Bright Illumination: No
- Elevation Adjustment Type: CDS-SZL2
- Electronic Reticle Level: No
- Illuminated Reticle: No
- Locking Dial: Yes
- Magnification Type: Variable
- Motion Sensor Technology (MST): No
- Nightvision Compatible Illumination: No
- Reticle Focal Plane: Second Focal Plane
- Revolution Indicator: Yes
- Reticle: TMOA
- Rezero Type: SpeedSet
- Reticle Type: Second Focal Plane
- Adjustable Objective: No
- Precision Side Focus: Yes
- Straight-Wall BDC Dials Included: No
- Windage Adjustment Type: Pop-Up Rezero
- Weight (oz): 23.8
- Elevation Adjustment Value per Click: 1/4MOA
- Elevation Adjustment Range (MOA): 100
- Elevation Adjustment Range (MIL): 29.1
- Elevation Adjustment Range (cm @ 100m): 291
- Elevation Adjustment Per Revolution: 20 MOA
- Elevation Dial Travel Limit: 38MOA
- Windage Adjustment Value per Click: 1/4MOA
- Windage Adjustment Range (MOA): 80
- Windage Adjustment Range (MIL): 23.3
- Windage Adjustment Range (cm @ 100m): 233
- Windage Adjustment Per Revolution: 20 MOA
- Magnification Max: 20
- Magnification Min: 4
- Objective Lens Diameter (mm): 52
- Linear FOV Low Mag (ft@100yds): 27.7
- Linear FOV High Mag (ft@100yds): 5.8
- Angular FOV Low Mag (Degrees): 5.3
- Angular FOV High Mag (Degrees): 1.1
- Eye Relief Low Mag (in): 3.8
- Eye Relief High Mag (in): 3.8
- Minimum Parallax-Free Distance (yd): 50
- A Total Length (in) - A: 14.5
- B Total Mounting Space (in) - B: 6.2
- C Front Mounting Space (in) - C: 2.1
- D Rear Mounting Space (in) - D: 2.4
- E Eyepiece Length (in) - E: 3.2
- F Objective Length (in) - F: 5.1
- G Objective Diameter (in) - G: 2.4
- H Eyepiece Diameter (in) - H: 1.8
- K Maintube Diameter (mm/in) - K: 34 mm
